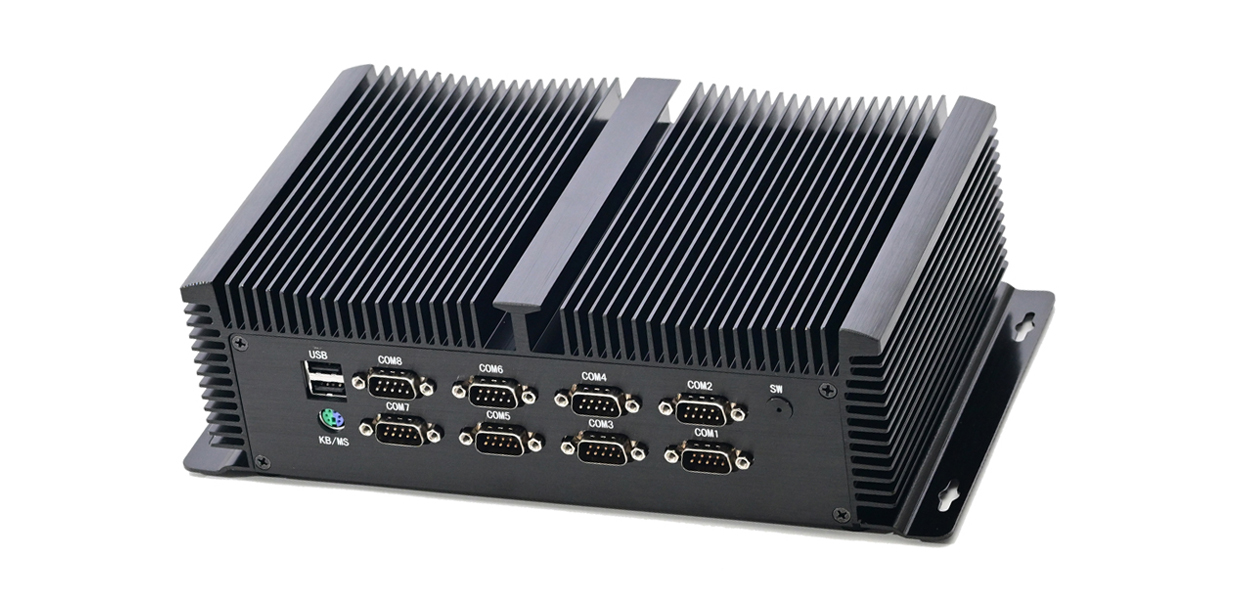

GT9000 Rugged Industrial PC | Dual HDMI+DP, 4G & Triple LAN for Harsh Environments
8COM RS232 RS422 RS485+3*I226 LAN+2HDMI+1DP+GPIO+SIM Card slot++8USB+PS/2
Products Features

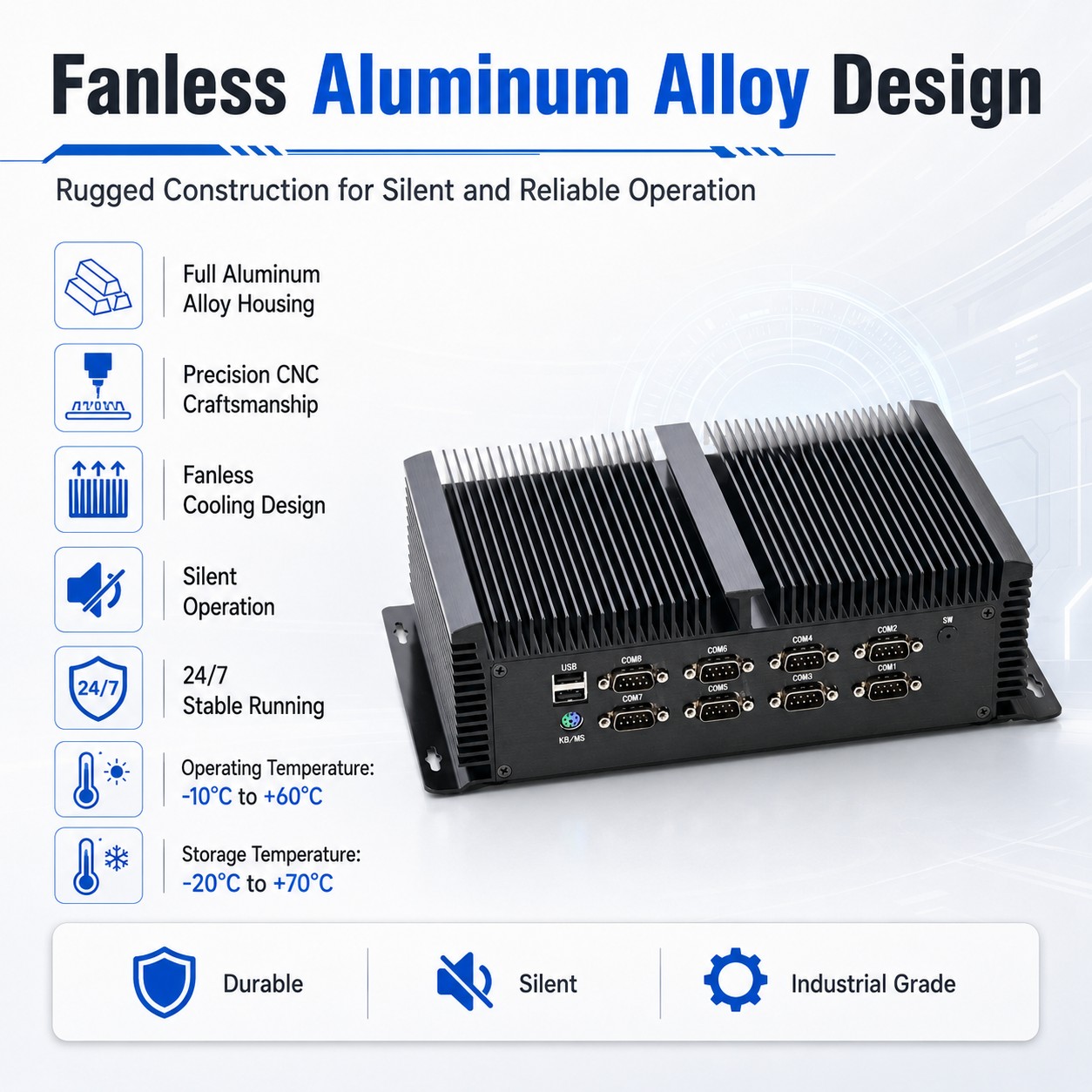

– Brushed Full Aluminum Alloy Black color shell, Exquisite production
crati on outside design.
– Fanless system without cooling fan, no any noise, work as long as 24 hours.
– Multi ports Support GPIO+Embedded with SIM Card slot support 4G Module
– 8*COM(RS232 RS422 RS485), COM1 COM2 support set to RS485/RS422
– 3*I226 Gigabit LAN RJ45+8USB Port+2HDMI+1DP+GPIO+PS/2.
– Can be mounted on the wall by long screws
-Support Restore AC Power loss/LAN PXE boot
Product Details
Specification
Ordering information
Product Details

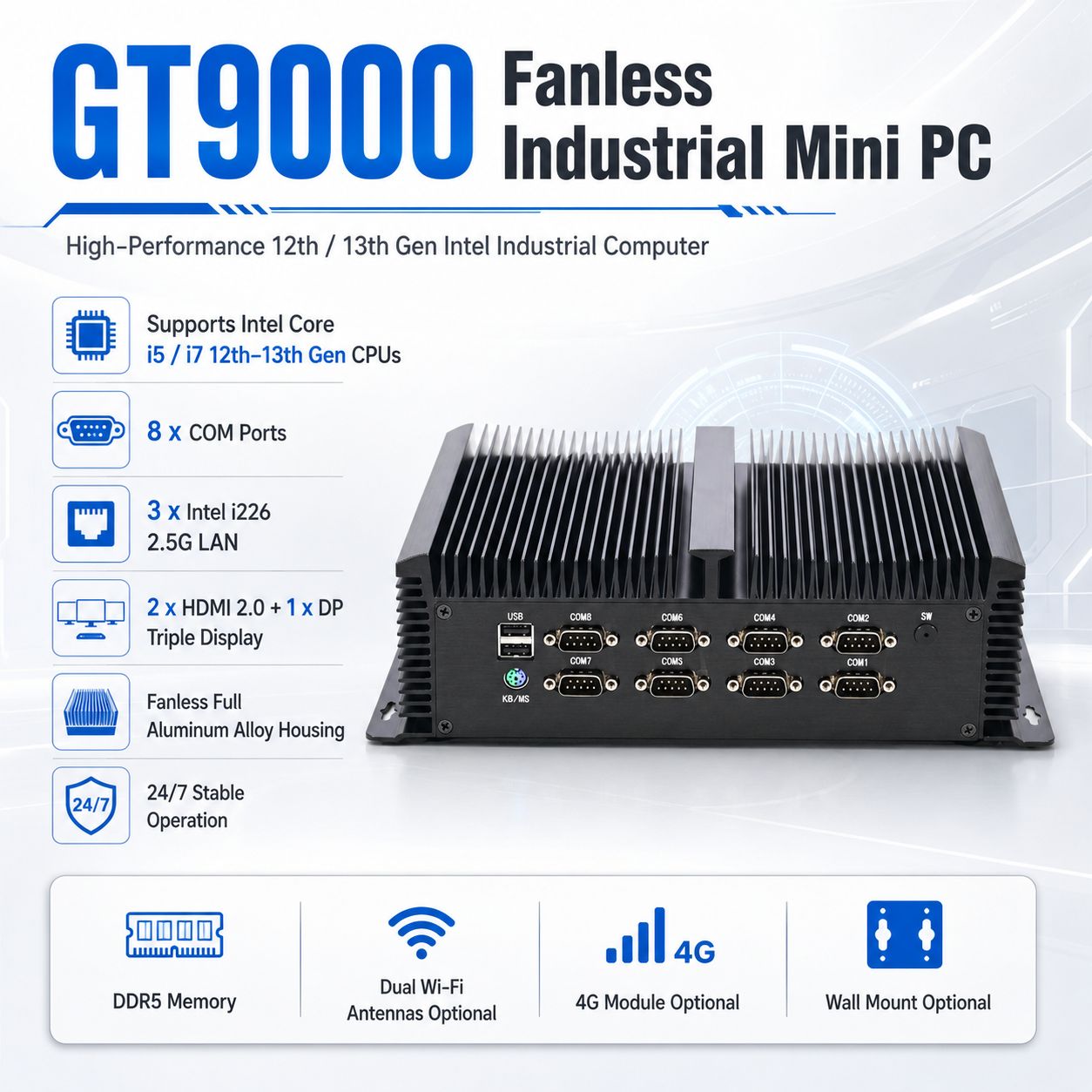

GT9000 Rugged Edge Computing System Dual HDMI + DisplayPort | 8 Industrial COM Ports | Cellular Connectivity Built-In
Key Features
Military-Grade Durability
Wide temp range (-10°C~60°C) & 50G shock resistance
100% fanless with aluminum thermal chassis
📶 Always-Connected
3G/4G module ready via internal SIM slot
Triple Gigabit LAN for network redundancy

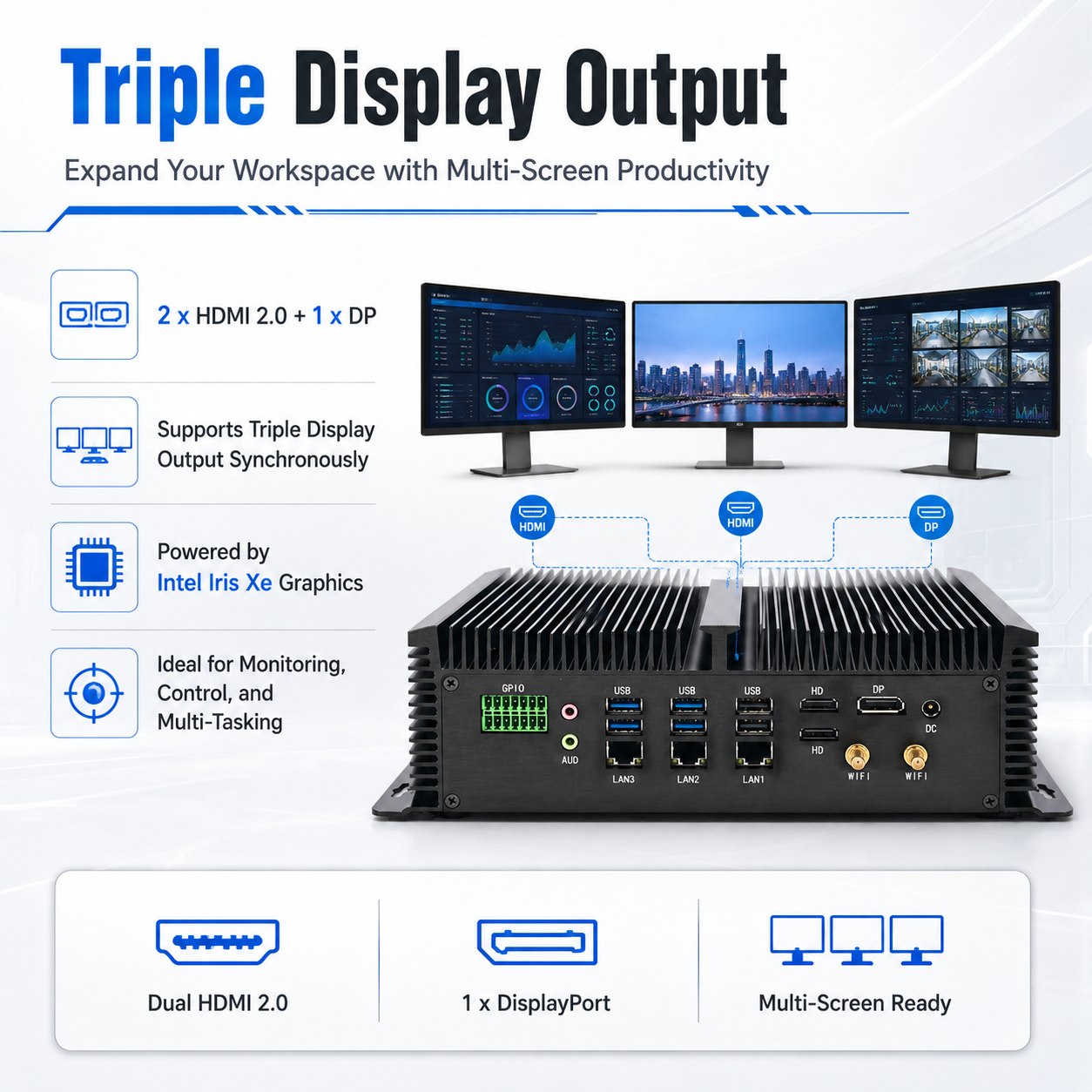

🖥️ Multi-Display Capability
2x HDMI 2.0 + 1x DisplayPort 1.4 (4K@60Hz)
Supports extended/duplicate display modes
🔧 Industrial I/O Master
8x isolated COM (RS232/RS485 configurable)
4x USB 3.0+ 4x USB 2.0
GPIO & Onboard 3* intel i226 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN
Technical Specifications

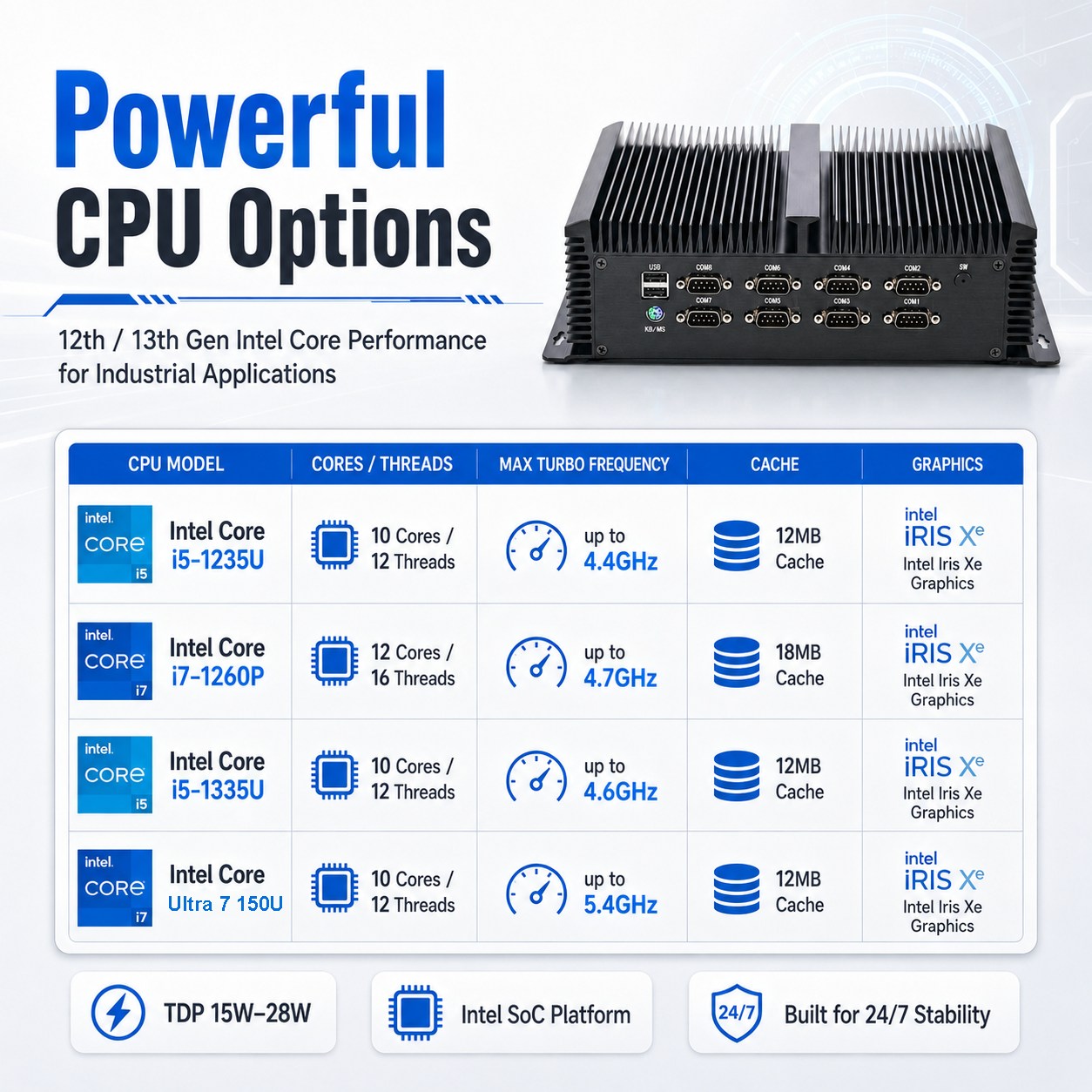

Processing: Intel® i5-1235U/ i7-1255U / i5-1335U / i7-1355U
RAM: DDR5 SODIMM Slot x2 (Max64GB)
SSD&Expansion: 1x M.2 2280 (SATA/NVMe) max up to 4TB / 1x Mini-PCIe (Pre-installed 4G module option)
Power Management: 9~36V DC Wide voltage input
Support for WOL/PXE/ Watchdog (1-256s programmable)
Value Proposition
The GT9000 solves critical challenges in extreme environments:
▶ Ensures continuous data flow in mining sites via 4G fallback
▶ Powers multi-screen control panels in manufacturing lines
▶ Survives -10°C freezer temperatures in cold chain monitoring
▶ Enables legacy device integration through 8 COM ports
▶ Reduces maintenance costs with 100,000+ hours MTBF”

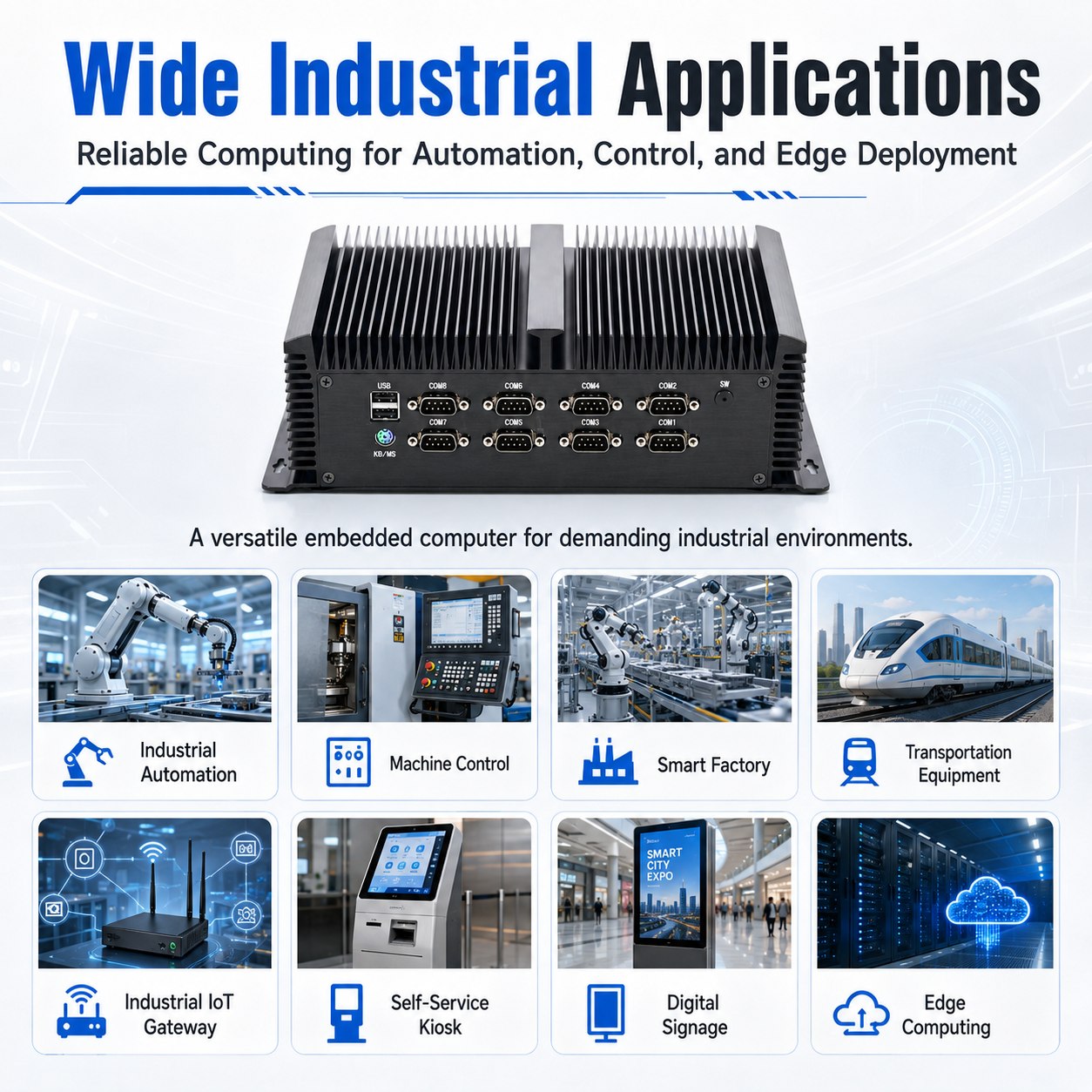

Application Matrix
Factory 4.0 | Smart Edge
CNC machine monitoring | SCADA systems | AGV control
Critical Infrastructure
Traffic management systems | Offshore wind farms | Tunnel monitoring
AI inference nodes | Mobile kiosks | Drone charging stations
Specification
| Basic Information: | |||
| CPU | Intel Core i5-1235U 10-core 12threads 1.3Ghz up to 4.4Ghz 12MB Cache with Intel Iris Xe Graphics G7 TDP 15W | ||
| Intel Core i7-1255U 10-core 12threads 1.7Ghz up to 4.7Ghz 12MB Cache with Intel Iris Xe Graphics G7 TDP 15W | |||
| Intel Core i5-1335U 10-core 12threads up to 4.6Ghz 12MB Cache with Intel Iris Xe Graphics G7 TDP 15W | |||
| Intel Core i7-1355U 10-core 12threads up to 5Ghz 12MB Cache with Intel Iris Xe Graphics G7 TDP 15W | |||
| TDP | 15W-55W | ||
| Chipset | Intel SOC | ||
| BOIS | AMI BIOS, ACPI supported | ||

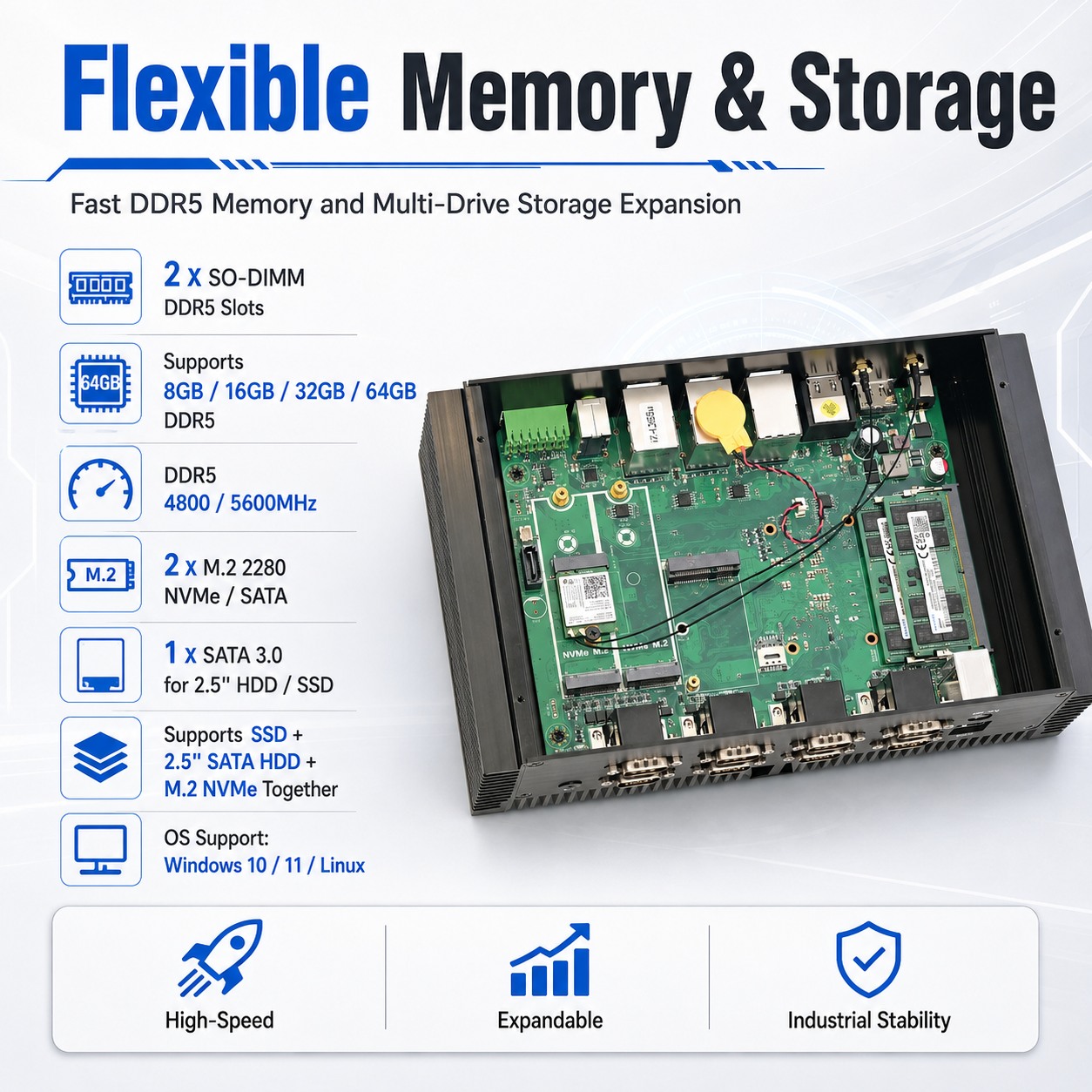

| Memory | 2 x SO-DIMM DDR5 Slot Support 8GB/16GB/32GB/64GB DDR5 4800/5600Mhz | ||
| OS | Windows 10/11/ Linux | ||
| Audio | ALC662 chip Support 6 channels of sound | ||
| Network | Onboard 3* intel i226 Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT LAN | ||
| Video | Intel Iris Xe Graphics G7 . Triple display output synchronously | ||
| 4G | Full hight 4G Module support. with SIM Card slot | ||
| Storage: | |||
| SATA | 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s | ||
| M.2 | 2 x M.2 2280 Nvme/SATA | ||
| Wi-Fi: | |||
| Module | 1 x M.2 NVME / 1x Minipcie for Wi-Fi module | ||
| Antenna | 2 x inner RF cables and 2 x external antennas | ||

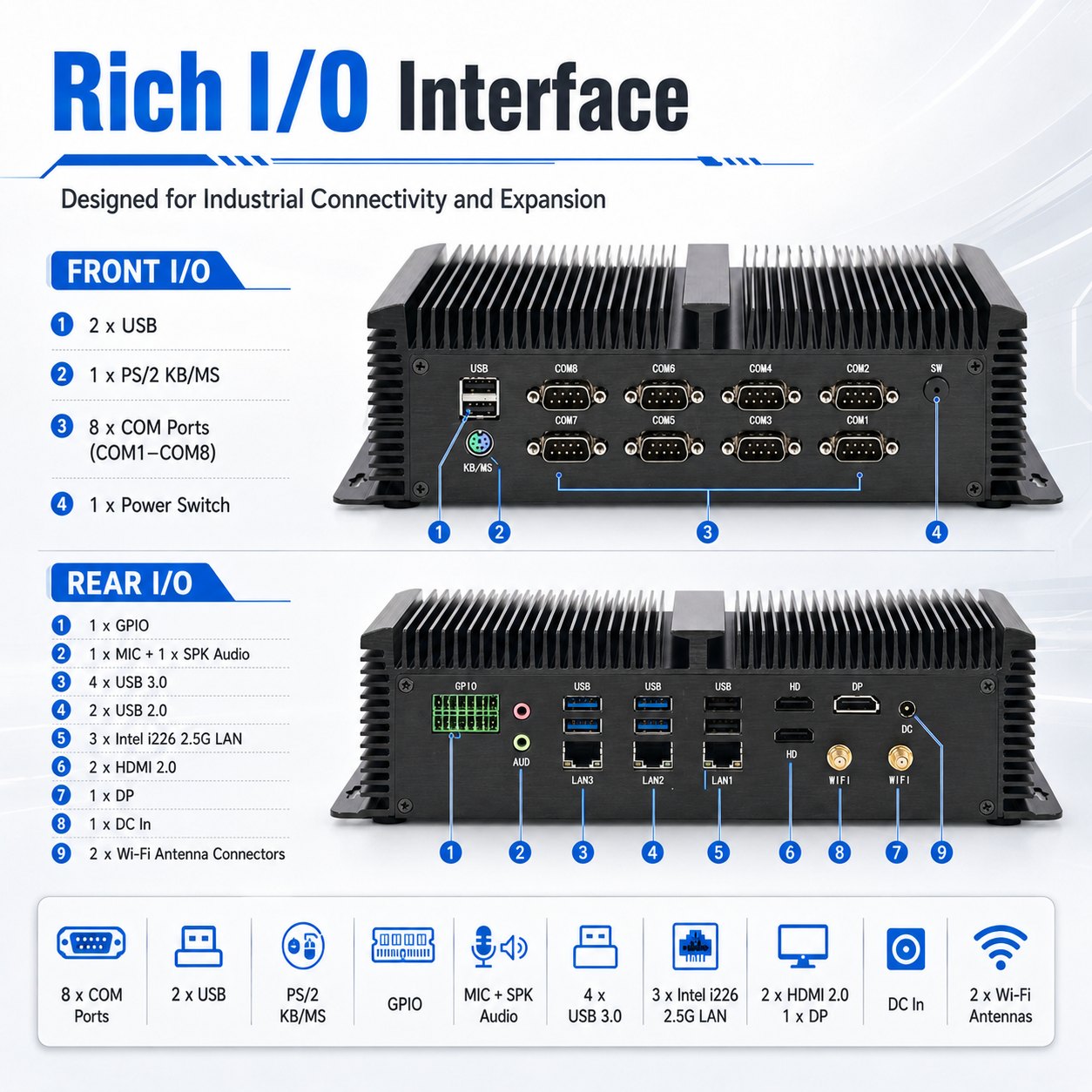

| Input/output port： | |||
| Switch | 1 x Power On/Off Switch | ||
| Power | 1 x 12V DC In | ||
| PS2 | 1 x PS2 | ||
| Gpio | 1 x GPIO | ||
| USB | 4 x USB2.0, 4 x USB3.0 | ||
| Display | 2 x HDMI 1.4 Output support 4K@30Hz | ||
| 1 DP | |||

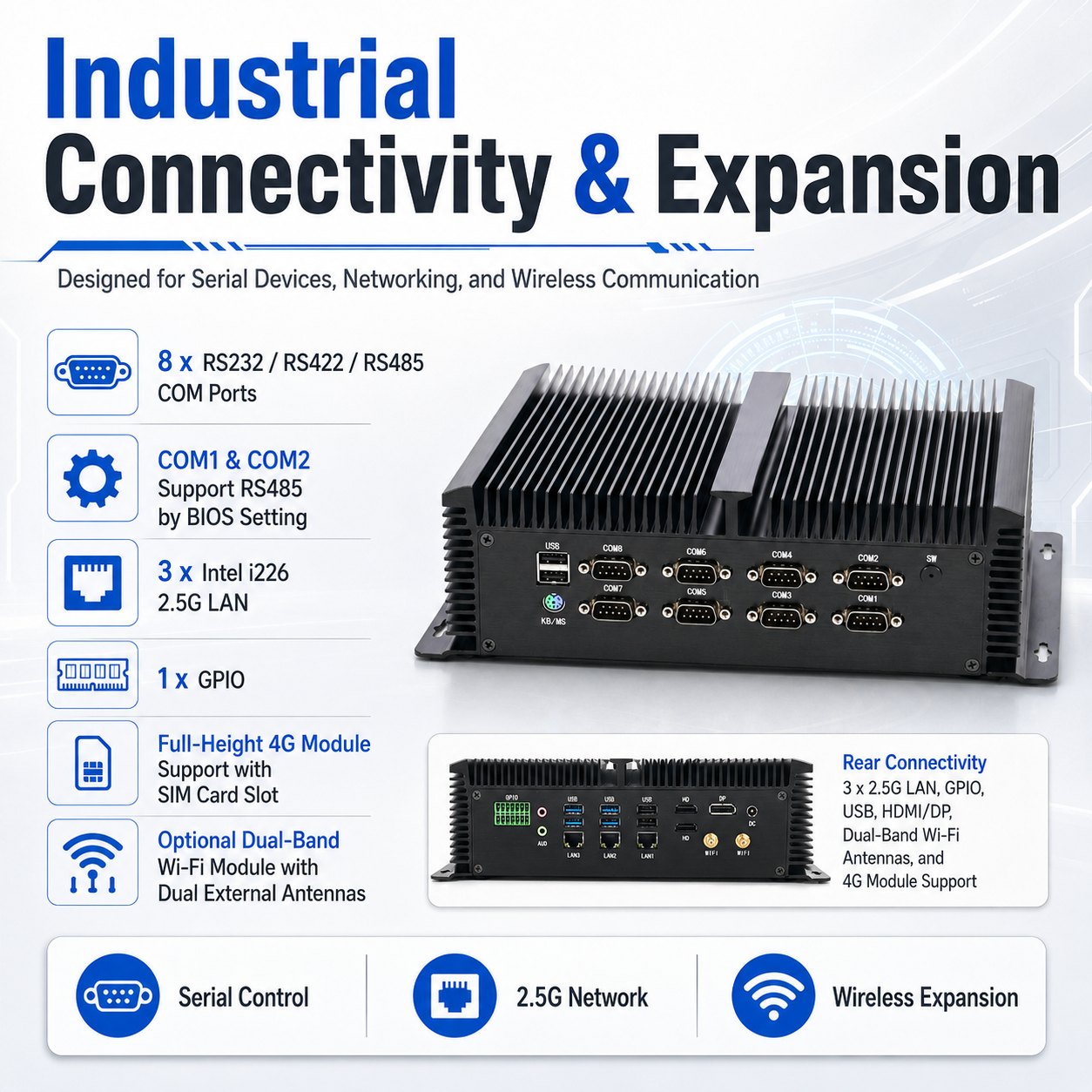

| COM | 8*RS232/RS422/RS485 COM Port(BIOS Settings) | ||
| LAN | 3 x i226 RJ45 Giga LAN | ||
| Audio | 1 x MIC, 1 x SPK | ||
| Power and Working Environment: | |||
| Input | DC100-240V AC/50-60Hz | ||
| Output | 12V 10A | ||
| Operating Temperature | 0/+60 Centigrade | ||
| Storage Temperature | -20/+ 70 Centigrade | ||
| Relative Humidity | 0%~90% (non-condensing) | ||
| Product Dimension & Details: | |||

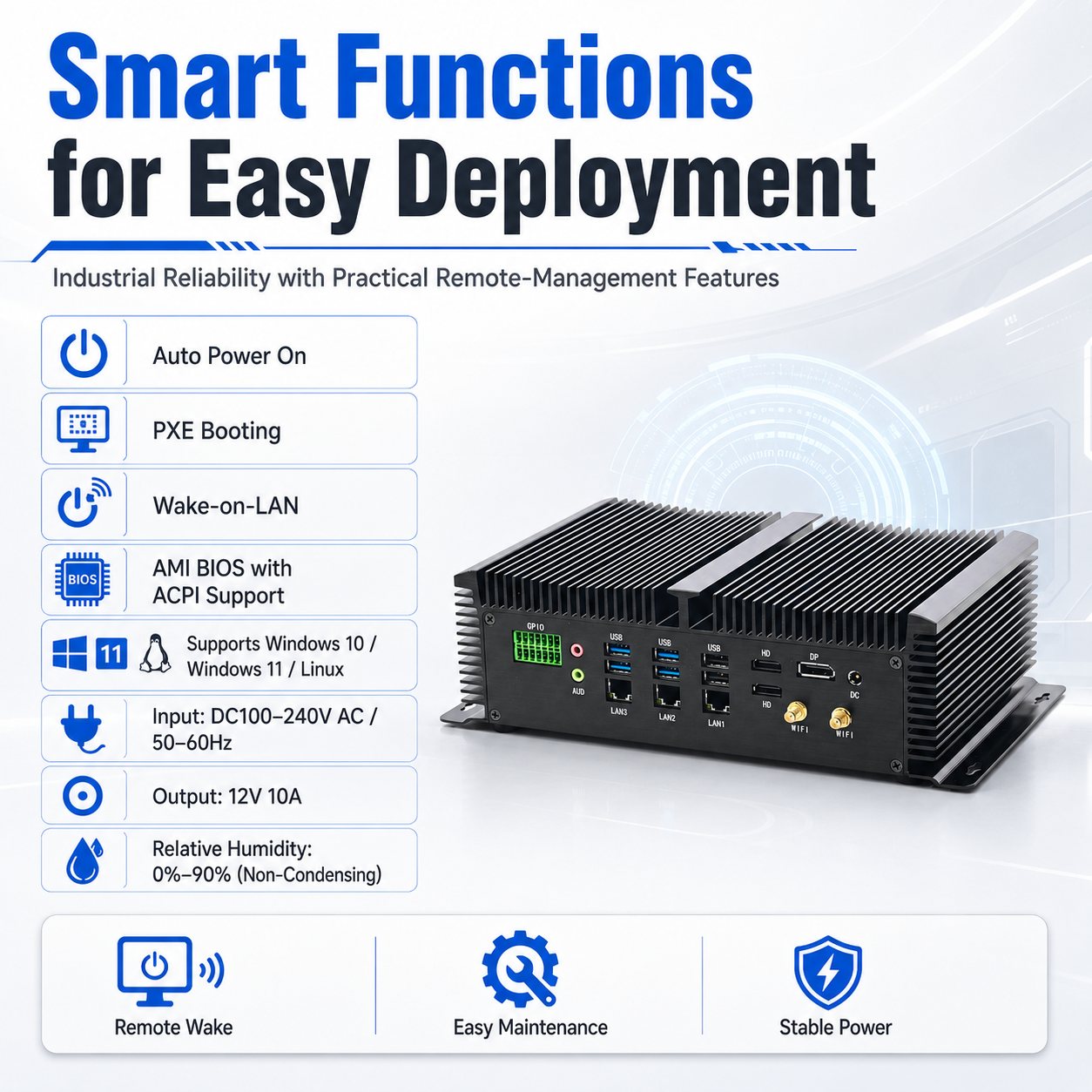

| Functions | Calls on function automatically, Wake-On-LAN,PXE | ||

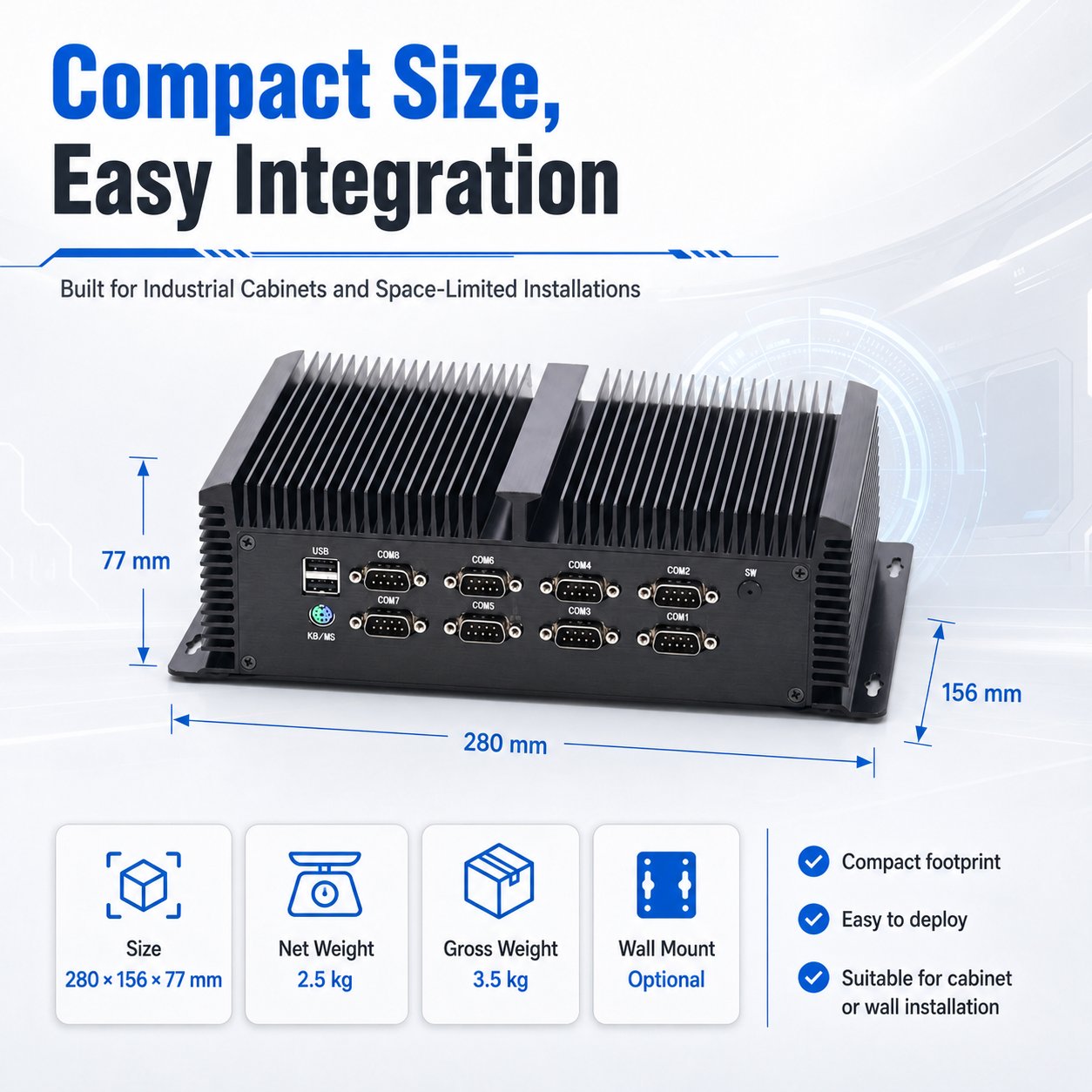

| Size | 280*156*77mm | ||
| Weight | Net 2.5kg, Gross 3.5kg | ||
| Shell | Aluminum Alloy with Black color | ||
| Cooling Mode | Fanless | ||
| Package Content： | |||
| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | ||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | COM | Power |
| GT9000 | i5-1235U | Intel Iris Xe Graphics G7 | 1.3~4.4 GHz | 2 x HDMI 1 x DP | 2 x SO-DIMM DDR5 | 1 x 2.5 inch / 1 x M.2 2280 SATA/NVME SSD | 3 x i226 | 8 | 8 | 19V/5A |
| GT9000 | i7-1255U | Intel Iris Xe Graphics G7 | 1.3~4.7 GHz | 2 x HDMI 1 x DP | 2 x SO-DIMM DDR5 | 1 x 2.5 inch / 1 x M.2 2280 SATA/NVME SSD | 3 x i226 | 8 | 8 | 19V/5A |
| GT9000 | I5-1335U | Intel Iris Xe Graphics G7 | up to 4.6Ghz | 2 x HDMI 1 x DP | 2 x SO-DIMM DDR5 | 1 x 2.5 inch / 1 x M.2 2280 SATA/NVME SSD | 3 x i226 | 8 | 8 | 19V/5A |
| GT9000 | I7-1355U | Intel Iris Xe Graphics G7 | up to 5Ghz | 2 x HDMI 1 x DP | 2 x SO-DIMM DDR5 | 1 x 2.5 inch / 1 x M.2 2280 SATA/NVME SSD | 3 x i226 | 8 | 8 | 19V/5A |
| Please note that the CPU will be updated according to the release time of Intel/AMD. If the latest CPU is not shown here, please contact our sales to get the latest information! | ||||||||||
