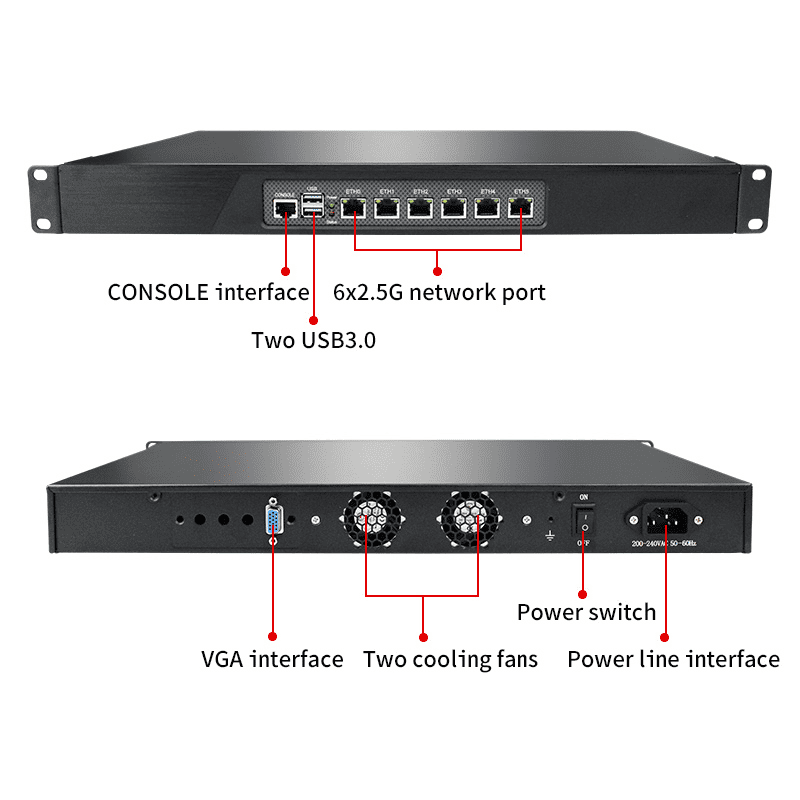

PfSense Router 6*Intel I225 I226 2.5GBE NIC Rackmount Firewall Appliance
– 6*Intel i226 2.5G RJ45 Ethernet Controllers, 2*USB3.0.
– 2*DDR4 SO-DIMM 2133/2400 MHz RAM slots, Maximum support 16GB.
– 1*mSATA
– Support 1 x VGA
– 2*Mini PCIE Extension slots, support WiFi and 4G/5G module at the same time.
– Support AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
– Widely Applications: Data centers, enterprise networks, cloud service providers, internet serviceproviders
Product Details
Specification
Ordering information
Product Details
JIRUICC 1U Firewall Appliance 6 LAN 2.5G LAN with Celeron N5105 N6005,Supported AES-NI, ESXI, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN
This Rackmount 1U Firewall Appliance Router PC with 6*Intel i225/I226 network card support 2.5GbE which can bring you faster network usage.
This firewall mini pc is fanless and slient router pc and preinstall with pfSense, also it support OPNsense/OpenWrt/Unbutun/windows and other popular open-source software solutions.
It is Widely used in: Network Security / Data centers / enterprise networks / cloud service providers / internet serviceproviders
Specification
| Brand | JIERUICC | |||
| CPU | Onboard Intel ® Core ™ N5105, FCBGA1338, 4 core 4 threads, 2.00GHz Base Frequency, 4MB Cache cache, TDP15W | |||
| Memory | 2 x DDR4 260PIN SO-DIMM slot (memory support voltage 1.2V) | |||
| Memory type DDR4, with a maximum of 16GB support | ||||
| Storage | 1 M-SATA, Solid-state disk interface | |||
| Extended Bus | 2 MINI PCIE interfaces (MPCIE2 only supports USB signal 4G module) | |||
| Network Cards | 6 x Onboard Intel i226 network card chip | |||
| Backplane I/O | 1*DC_IN power supply interface | 1*LED lamp | ||
| 1*double-layer USB3.0 interface | 6*LAN interface | |||
| 1*reset button | 1*switch button | |||
| 1*RJ45 COM port | ||||
| Onboard I/O | 1*VGA interface | 1*VGA interface | ||
| 1*KM mouse / keyboard interface | 1*DC power supply 4Pin interface | |||
| 2*USB2.0 pin (external 4*USB2.0 interface) | 1*COM interface (9pin) RS232 optional | |||
| 1*CPU fan supply outlet | 1*system fan supply socket | |||
| 1*SIM card slot optional | ||||
| Power Supply | DC _IN 12V | |||
| Working Temperature | -20~55 ℃ | |||
| Dimension of motherboard | 180mm x 220mm | |||
| Dimension of Device | Dimension of motherboard | |||
| Weight | 6.5KG | |||
| Ambient Temperature | 5~90℃ Relative humidity, no condensation | |||
Ordering information
| Model | Processor | Graphics | Frequency | Display | Memory | Storage | LAN | USB | Power |
| GT1U6L-N5105 | N5105 | Intel UHD Graphics | 2.0~2.9 GHz | VGA | 2 x SO-DIMM DDR4, Max 16G | 1 x Msata | 6 x i225/226 | 2 | 12V/5A |
