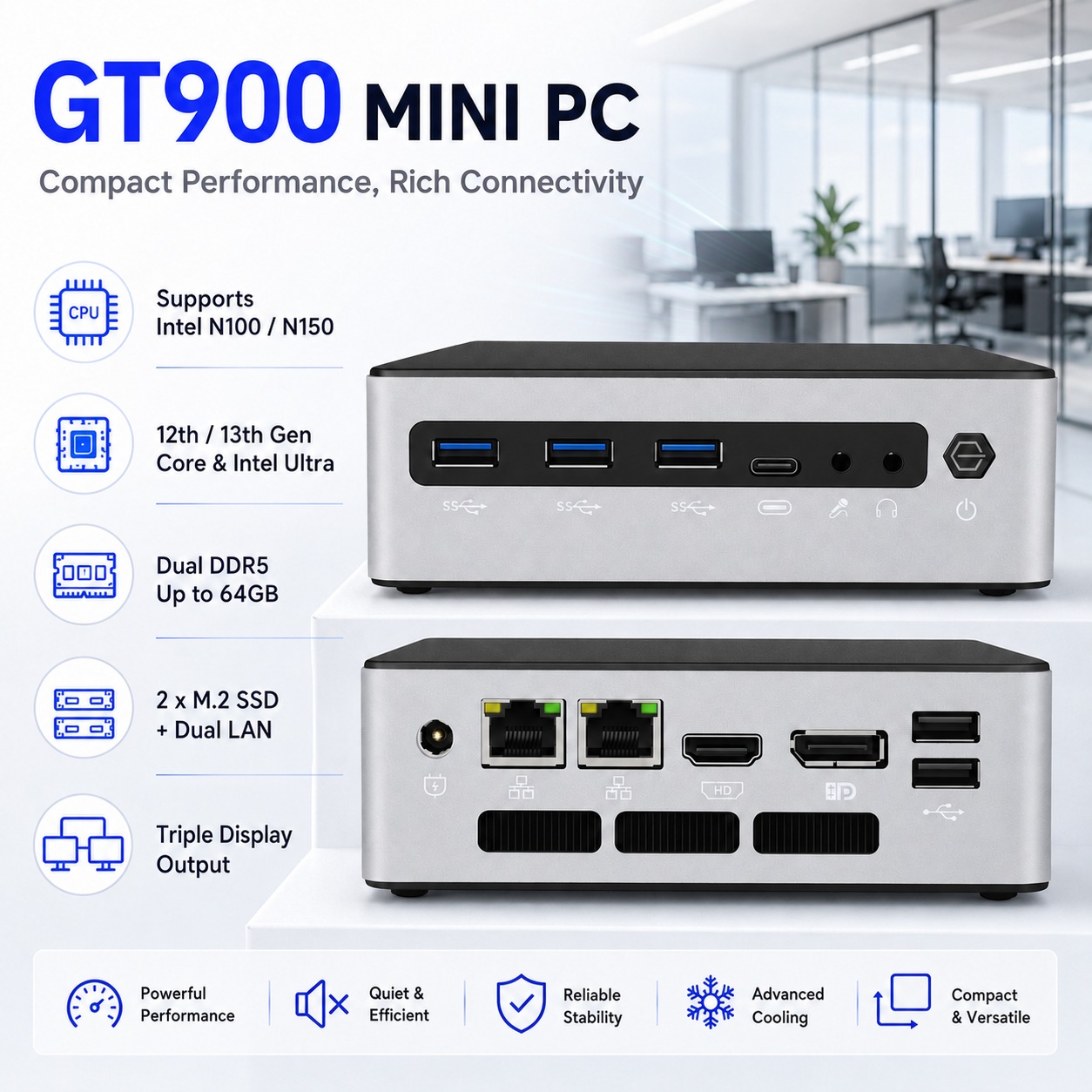

Ultra-Compact Mini PC | Intel 12th/13th/14th Gen | 4K Triple Display & Dual LAN
Products Features
– 2 x SO-DIMM DDR5 memory slot up to 64GB more powerful performance
improve work efficiency and give you a smooth experience.
– 2x M.22280 NVME + 2 x GbE RJ45 Realtek 8111H

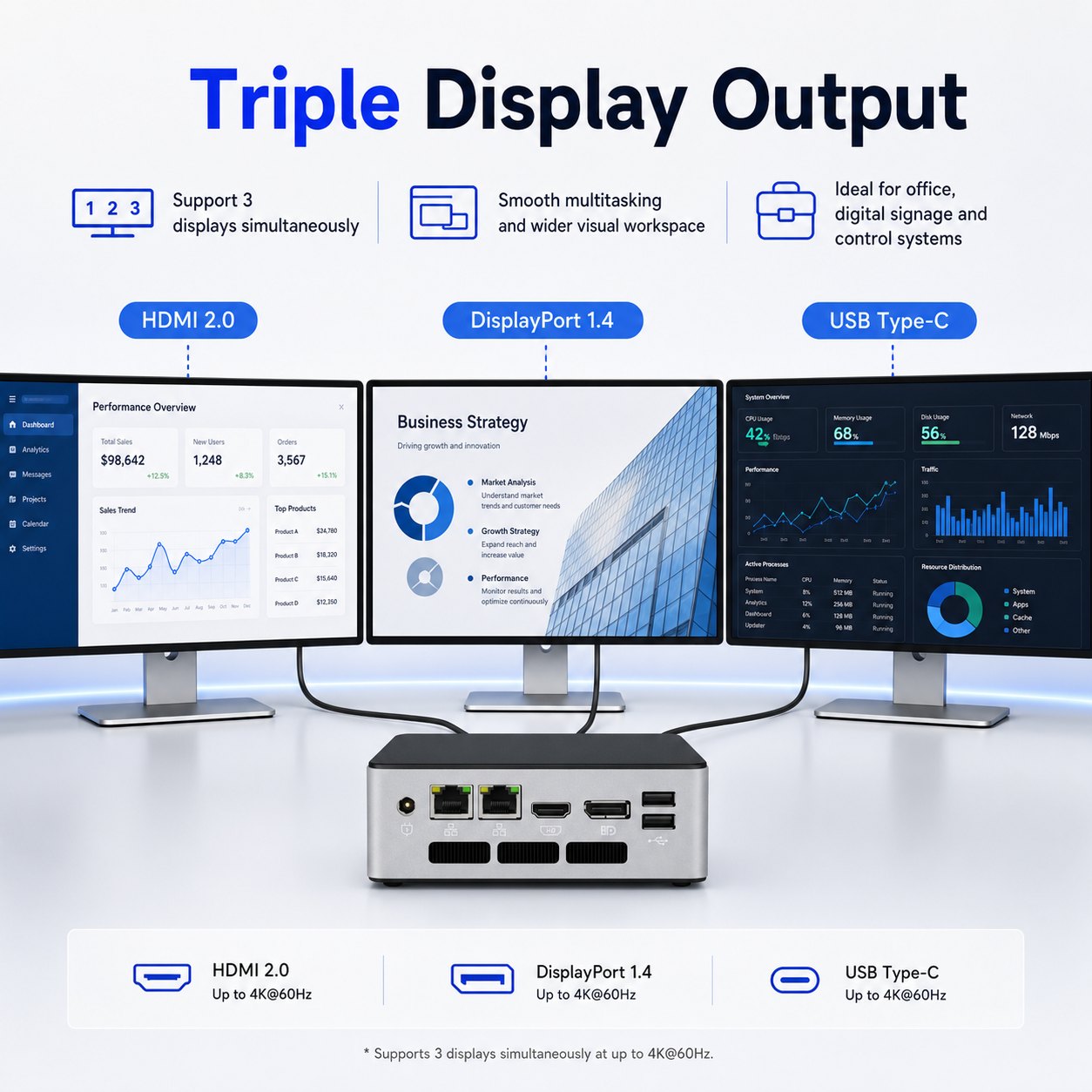

– Support three Display: HDMI2.0 + DP 1.4 + USB Type-C 3 display output synchronously.

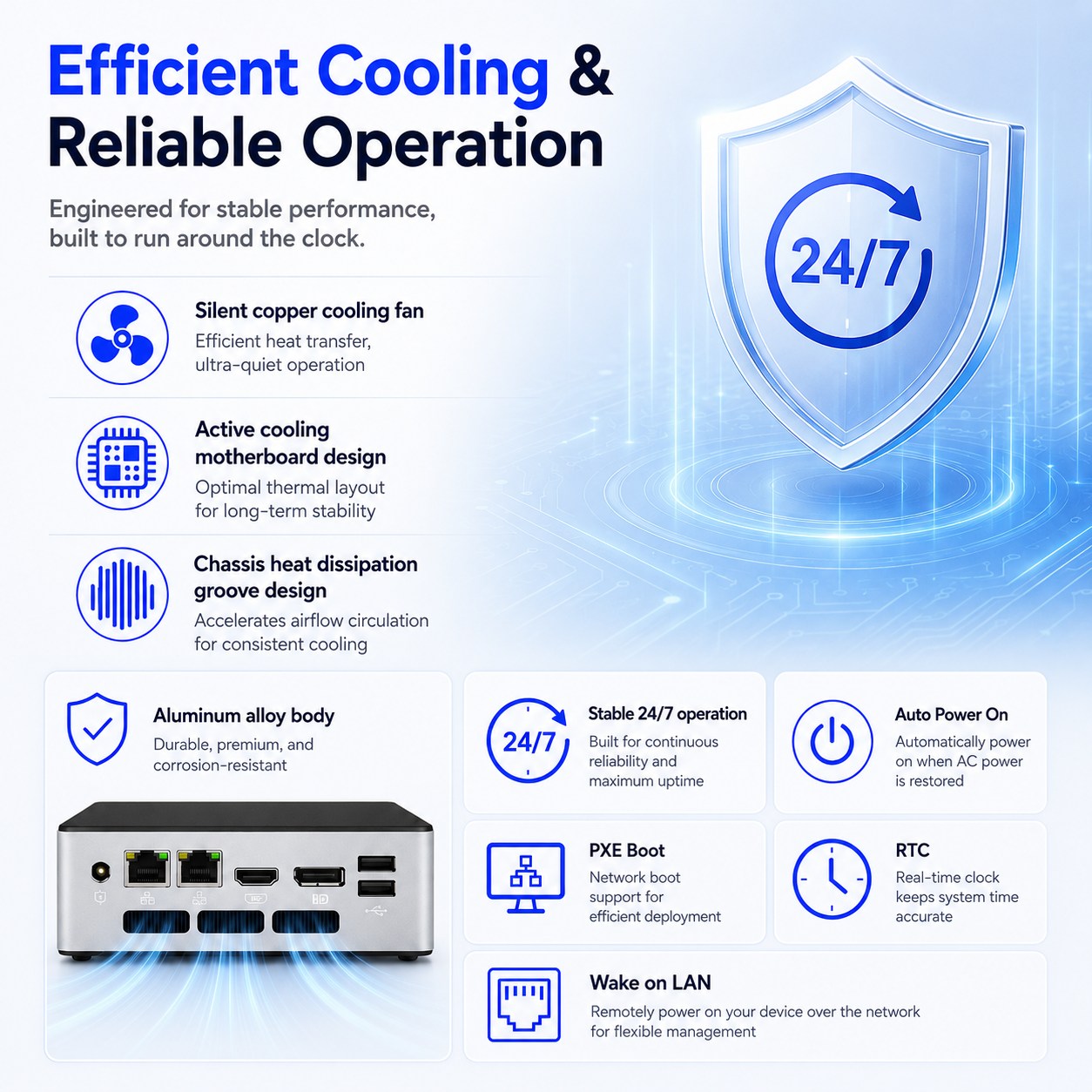

– With a silent copper cooling fan, works as long as 24 hours.
– Optional built-in Wi-Fi and Bluetooth with internal antennas make the signal more
stable and stronger.
– Support PXE, Auto Power On, RTC, Wake On LAN
Product Details
Specification
Ordering information
Product Details
The NUC Mini PC Intel i3-1215U i3-1215U i7-1255U i7-1270P i5-1340P i7-1360P i5-1335U i7-1355U processor is designed with an impressive array of interfaces to meet the connectivity needs of various industries.
Core Selling Points 🚀 Next-Gen Performance
Intel 12th/13th/14th Gen CPUs (i3-1215U to i7-1360P)
DDR5 RAM up to 64GB | PCIe 4.0 NVMe x2
🎮 4K Visual Dominance
Triple Display: DP1.4 + HDMI2.0 + USB-C Alt Mode
8K@60Hz HDR Ready
🌐 Pro-Grade Connectivity
Dual 2.5G LAN ports (Realtek RTL8111H)
6x USB ports (4x USB 3.2 Gen2 + 2x USB 2.0)
📦 Future-Proof Expansion
2x M.2 2280 slots (NVMe/SATA)
WiFi 6 & Bluetooth 5.2 pre-installed
Home Office Master
Simultaneously drives three screens: financial software + video conferencing + stock quotes
Hardware-level data encryption ensures remote office security
Creative Studio
4K video editing + color correction screen + material library management multi-tasking
Thunderbolt 4 external graphics dock expansion capability
Entertainment Hub
HDR streaming + game live broadcast + smart home control center
Education
For multimedia teaching
Specification
| Basic Information: | ||||
| CPU | Intel Alder Lake Core i3-1215U 1.2GHz up to 4.4GHz(Turbo boost Technology) 6 Core 8 Threads 10MB cache 15W TDP Intel® UHD Graphics. | |||
| Intel Alder Lake Core i5-1235U 1.3GHz up to 4.4GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache 15W TDP Intel® Iris® Xe Graphics eligible. | ||||
| Intel Alder Lake Core i7-1255U 1.7GHz up to 4.7GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache 15W TDP Intel® Iris® Xe Graphics eligible. | ||||
| Intel Raptor Lake Core i7-1270P 2.2GHz up to 4.8GHz(Turbo boost Technology) 12 Core 16 Threads 18MB cache 28W TDP Intel® Iris® Xe Graphics eligible. | ||||
| Intel Raptor Lake Core i5-1340P 1.8GHz up to 4.6GHz(Turbo boost Technology) 12 Core 16 Threads 12MB cache 20W TDP Intel® Iris® Xe Graphics eligible. | ||||
| Intel Raptor Lake Core i7-1360P 2.2GHz up to 5.0GHz(Turbo boost Technology) 12 Core 16 Threads 18MB cache 28W TDP Intel® Iris® Xe Graphics eligible. | ||||
| Intel Raptor Lake Core i5-1335U 1.3GHz up to 4.6GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache 15W TDP Intel® Iris® Xe Graphics eligible | ||||
| Intel Raptor Lake Core i7-1355U up to 5.0GHz(Turbo boost Technology) 10 Core 12 Threads 12MB cache 15W TDP Intel® Iris® Xe Graphics eligible. | ||||
| TDP | Refer to the above CPU | |||
| Graphics Card | Core graphics card, Intel Iris graphics | |||
| Display Port | 1*HD+1*DP+1*Type-C display | |||

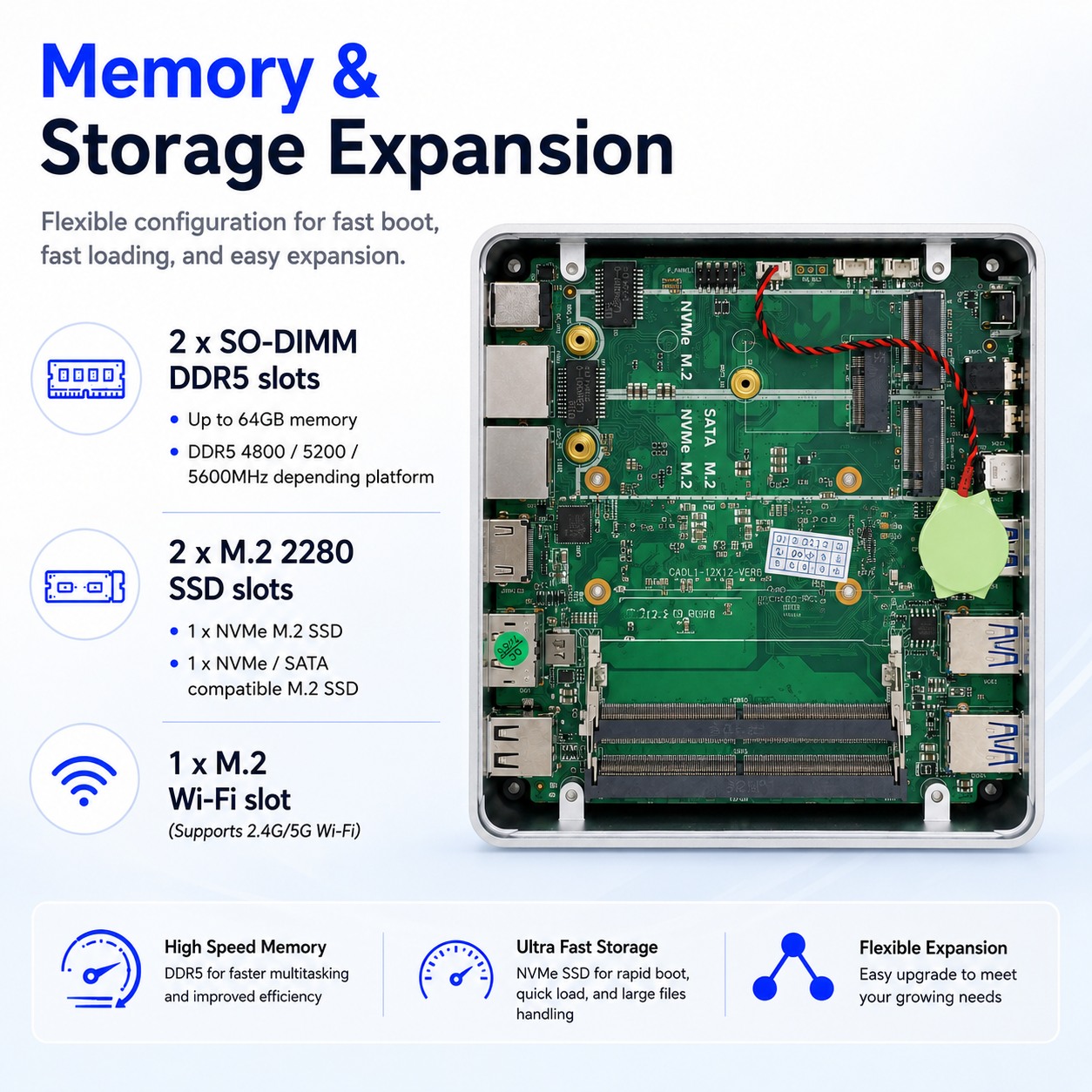

| Memory | 2 x SO-DIMM DDR5 Slot, up to 64GBDDR5 4800MHz/ 5200MHz | |||
| OS | Windows10/11/Linux/Pfsense | |||

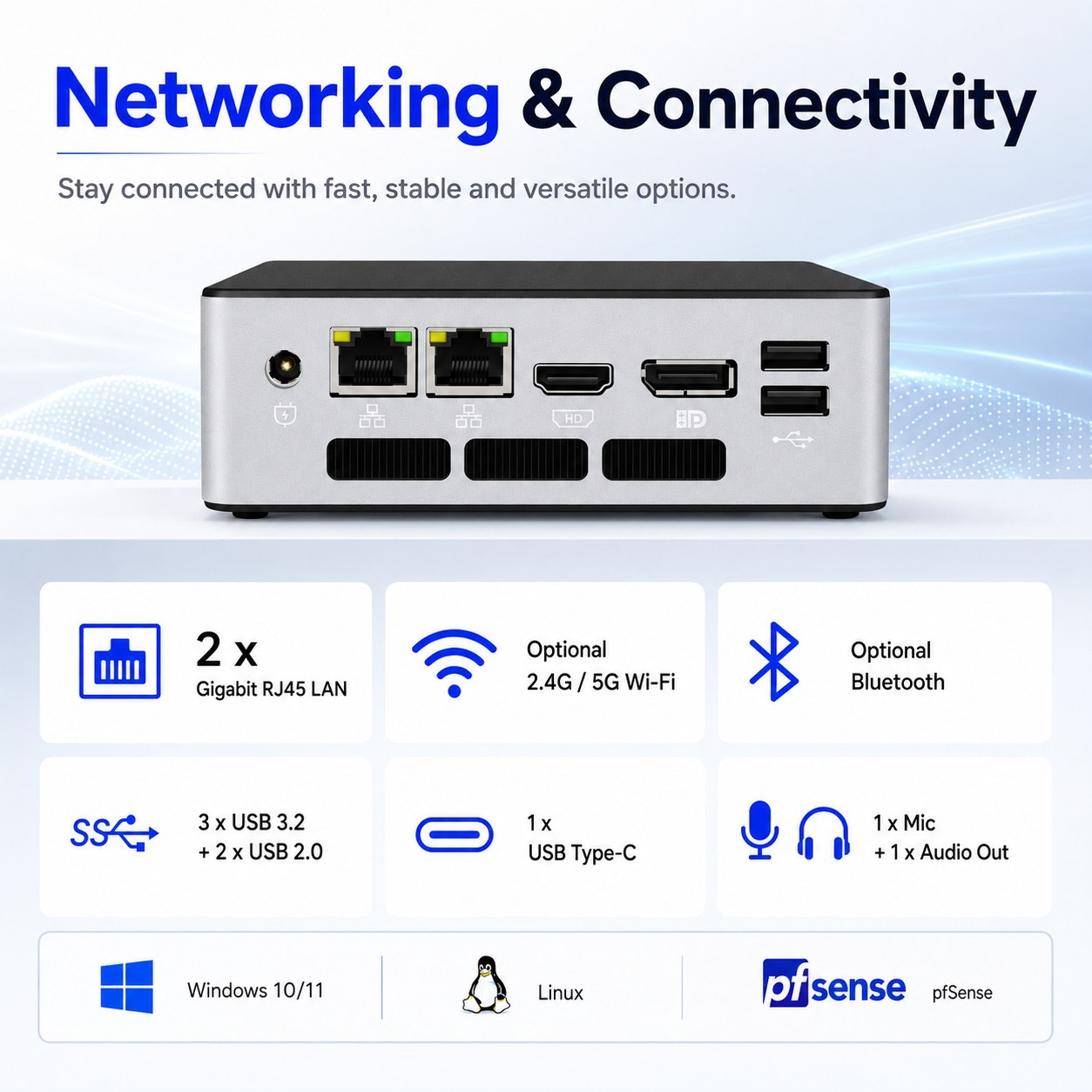

| Network | 2 x Realtek RTL8111H Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN | |||
| Audio | CJC6811A sound card | |||
| Wi-Fi: | ||||
| Module | 2*RTL8168/8111/8112G/H gigabit network card 1*M.2 WiFi interface, Support 2.4G/5G WIFI communication | |||

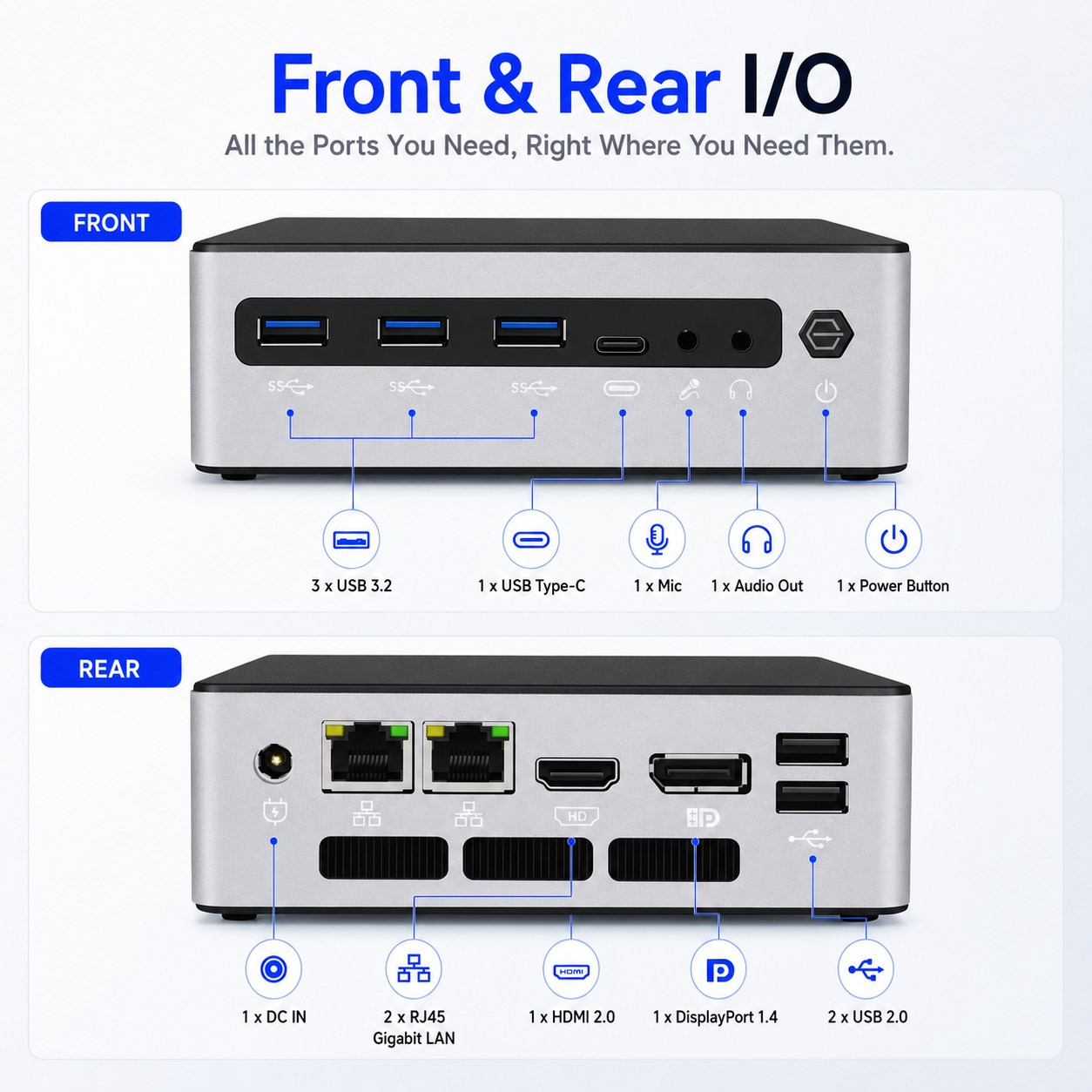

| Input/output port： | ||||
| Switch | 1 x Power On/Off Switch | |||
| Power | 1×DC（55*25) 12-19V | |||
| USB | 3 x USB3.2, 2 x USB2.0 | |||
| Display | 1*HDMI2.0+1*DP+1.4*Type-C display | |||
| LAN | 2 x GbE RJ45 Realtek 8111H | |||
| Type-c | 1 x Type-C(display) | |||
| Audio | 1 x MIC, 1 x SPK | |||
| Storage: | ||||
| M.2 | 1*NVME M.2 SSD interface 1*NVME M.2 compatible SATA M.2 SSD interface | |||
| Power and Working Environment: | ||||
| Input | DC100-240V AC/50-60Hz | |||
| Output | DC +12V~+19V, recommend 19V 4.74A | |||
| Operating Temperature | -20/+60 Centigrade | |||
| Storage Temperature | -30/+70 Centigrade | |||
| Relative Humidity | 5%~95% @30°C(non-condensing) | |||
| Product Dimension & Details: | ||||
| Size | Mini PC: 130mm * 125mm *42mm / Packing size: 30*20*12CM | |||
| Weight | Netweight:0.64 kg / GW：1.5KG | |||
| Shell | Aluminum alloy chassis with plastic cover | |||
| Cooling Mode | All-copper turbo fan | |||
| Plugs Type | US/JP/AU/UK/EU | |||
| BIOS | Supports power-on/network wake-up/diskless startup | |||
| Package Content： | ||||

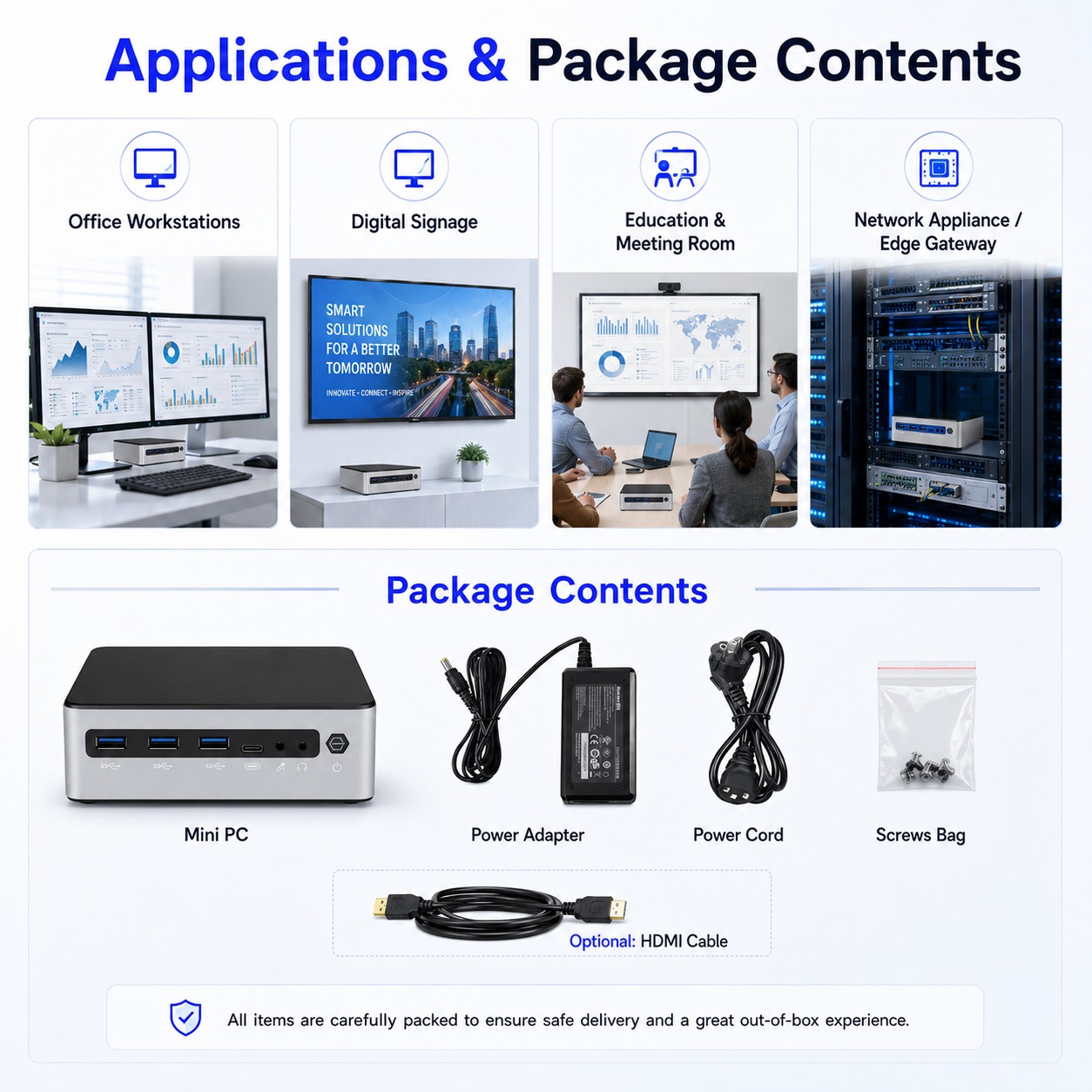

| Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | |||
| Optional | 1xHDMI cable | |||
Ordering information
| Model | Processor | Graphics | Frequency | TDP | Display | Memory | Storage | LAN | USB | Power |
| GT900 | i3-1215U | Intel® Iris® Xe Graphics eligible | 1.2GHz up to 4.4GHz | 15W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GT900 | i5-1235U | Intel® Iris® Xe Graphics eligible | 1.3GHz up to 4.4GHz | 15W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GT900 | i7-1255U | Intel® Iris® Xe Graphics eligible | 1.7GHz up to 4.7GHz | 15W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GT900 | i7-1270P | Intel® Iris® Xe Graphics eligible | 1.8GHz up to 4.6GHz | 28W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GT900 | i5-1340P | Intel® Iris® Xe Graphics eligible | 2.2GHz up to 5.0GHz | 28W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GT900 | i7-1360P | Intel® Iris® Xe Graphics eligible | 1.3GHz up to 4.6GHz | 28W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GT900 | i5-1335U | Intel® Iris® Xe Graphics eligible | 3.5GHz up to 4.7GHz | 15W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
| GT900 | i7-1355U | Intel® Iris® Xe Graphics eligible | up to 5.0GHz | 15W | 1DP1.4+1 HDMI 2.0 1*Type-C | 2 x SO-DIMM DDR5, up to 64GB | 2 x M.2 2280 Nvme | 2 | 4*USB3.2 2*USB2.0 | 19V/4.7A |
